Stud Mount 6A-600A 200VDC Industrial Power Fuses High Speed Type For Car

Brand Name : Tian Rui

Model Number : S88 Series

Certification : ROHS

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : D/P, T/T,Paypal, Western Union

Supply Ability : 1000000PCS/Month

Delivery Time : 5-7 Days

Packaging Details : PE bag, Bulk

Product Name : Stud Mount Bolted DC Fuse Link

Rated Current : 6A to 600A

Rated Voltage : 200V DC

Bolts : M6

Mount : Stud Mount

Installation torque : 6.0±1.0(N.m)

Glass of Operation : EV Fuse

Breaking Capacity : 20kA@200Vdc

Feature : Excellent DC performance

Type : High Speed

Contact Now

S88 Electric Vehicle Protection Stud Mount Bolted DC Cylindrical Porcelain Car High Speed Fuse Link

Specifications

S88 Style Stud-Mount Fuses 6A~600A 200Vdc

Class of Operation: EV fuse

Rating: •Amps: 6-600A •Volts: 200Vdc

Breaking Capacity: •Max:20kA@200Vdc •Min:200%In@200Vdc

Standards / Approvals

•Designed to:JASO-D622/ISO8820/GB31465

•Manufactured under a IATF16949 quality system for compliance with automotive requirements

•Reach declaration available upon request

•CE

•RoHS compliant

Features & Benefits

•Excellent DC performance

•Low arc voltage and low energy let-through(I2t)

•Superior cycling capability

•EV/HEV Application

Dimensions(Unit:mm)

Stud Mount 6A-600A 200VDC Industrial Power Fuses High Speed Type For Car

Rated Current

Type

A士1.5

B士1.0

C士1.0

D士1.5

E士1.5

F士0.5

G士1.0

H士0.5

J士0.5

P士1.0

6-160A .

LET

55.5

17.7

25

38.5

44.5

6.5

12

2

9.5

16.2

180-300A

LMT

64.5

29

29

43

48.5

8.1

20

3

10.7

31.5

315-600A

88

37.5

30.5

55

65

11

25

3

16

39.5

160-600A

LMTS

84

38

30.5

50.5

61.5

10.5

25.5

3

16

42

Electrical Characteristics

Serial number

Part Number

Rated Current
(A)

Stud Mount 6A-600A 200VDC Industrial Power Fuses High Speed Type For CarEnergy Integrals I t
Pre-Arcing Clearing at 200V

Watts Loss
(W)

Use bolts

Installation torque

1

LET-200-6A

6

3

9

0.8

M6

6.0±1.0(N.m)

2

LET-200-10A

10

9

28

0.9

M6

6.0±1.0(N.m)

3

*LET-200-12A

12

13

44

1.0

M6

6.0±1.0(N.m)

4

LET-200-16A

16

26

88

1.3

M6

6.0±1.0(N.m)

5

LET-200-20A

20

46

161

1.6

M6

6.0±1.0(N.m)

6

LET-200-25A

25

72

259

1.7

M6

6.0±1.0(N.m)

7

LET-200-32A

32

122

450

2.6

M6

6.0±1.0(N.m)

8

LET-200-35A

35

166

632

2.7

M6

6.0±1.0(N.m)

9

LET-200-40A

40

233

910

2.9

M6

6.0±1.0(N.m)

10

LET-200-50A

50

415

1659

3.4

M6

6.0±1.0(N.m)

11

LET-200-63A

63

737

3023

4.1

M6

6.0±1.0(N.m)

12

LET-200-80A

80

1659

6967

4.4

M6

6.0±1.0(N.m)

13

LET-200-100A

100

2592

11146

5.8

M6

6.0±1.0(N.m)

14

LET-200-125A

125

4115

18106

7.7

M6

6.0±1.0(N.m)

15

LET-200-150A

150

6636

29860

9.4

M6

6.0±1.0(N.m)

16

LET-200-160A

160

7788

35823

11.5

M6

6.0±1.0(N.m)

17

LMT-200-180A

180

5243

16253

15.9

M8

12.0±1.0(N.m)

18

LMT-200-200A

200

6272

20070

16.2

M8

12.0±1.0(N.m)

19

*LMT-200-225A

225

8357

27577

16.8

M8

12.0±1.0(N.m)

20

LMT-200-250A

250

10368

35251

17.5

M8

12.0±1.0(N.m)

21

*LMT-200-275A

275

12800

44800

18.1

M8

12.0±1.0(N.m)

22

LMT-200-300A

300

16056

57803

19.6

M8

12.0±1.0(N.m)

23

LMT-200-315A

315

17522

64831

23.2

M10

24.0±3.0(N.m)

24

LMT-200-350A

350

22303

84750

24.6

M10

24.0±3.0(N.m)

25

LMT-200-400A

400

31150

121485

28.5

M10

24.0±3.0(N.m)

26

LMT-200-450A

450

39649

158597

33.5

M10

24.0±3.0(N.m)

27

LMT-200-500A

500

55378

227049

36.2

M10

24.0±3.0(N.m)

28

LMT-200-600A

600

86528

363418

45.7

M10

24.0±3.0(N.m)

29

*LMTS-200-160A

160

3596

11146

12.8

M10

24.0±3.0(N.m)

30

*LMTS-200-180A

180

4794

15341

14.0

M10

24.0±3.0(N.m)

31

*LMTS-200-200A

200

6272

20698

15.1

M10

24.0±3.0(N.m)

32

*LMTS-200-225A

225

8295

28202

16.7

M10

24.0±3.0(N.m)

33

LMTS-200-250A

250

10600

37099

18.1

M10

24.0±3.0(N.m)

34

*LMTS-200-275A

275

12800

46080

20.9

M10

24.0±3.0(N.m)

35

LMTS-200-300A

300

16056

59408

22.2

M10

24.0±3.0(N.m)

36

*LMTS-200-315A

315

17402

66129

23.6

M10

24.0±3.0(N.m)

37

LMTS-200-350A

350

22303

86981

24.6

M10

24.0±3.0(N.m)

38

LMTS-200-400A

400

30356

121426

30.2

M10

24.0±3.0(N.m)

39

LMTS-200-450A

450

39649

162562

33.5

M10

24.0±3.0(N.m)

40

LMTS-200-500A

500

55378

232587

33.2

M10

24.0±3.0(N.m)

41

LMTS-200-600A

600

83363

358459

37.4

M10

24.0±3.0(N.m)

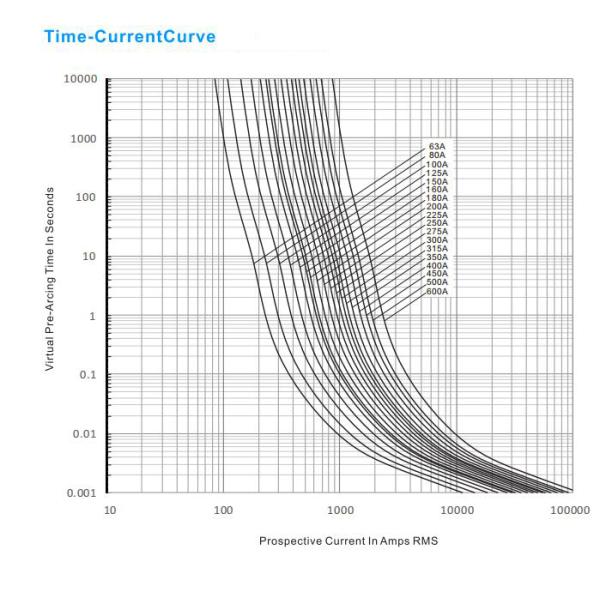

Stud Mount 6A-600A 200VDC Industrial Power Fuses High Speed Type For Car
